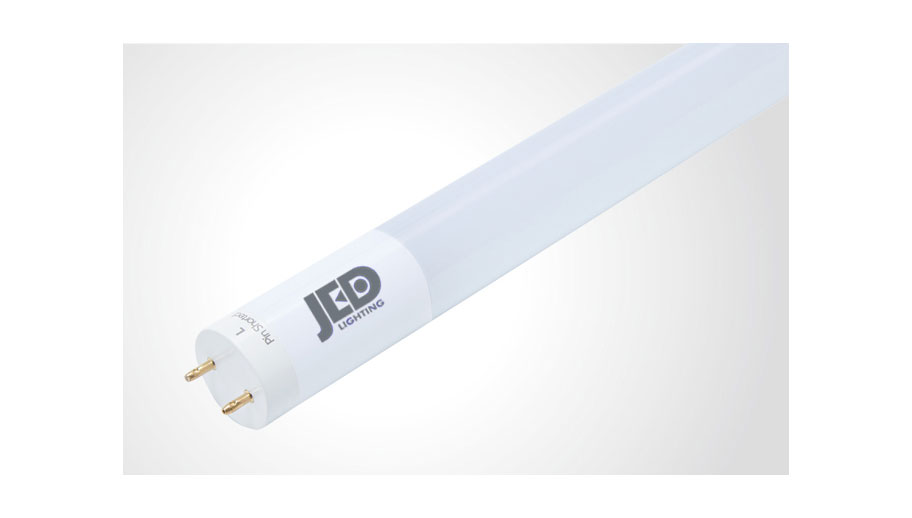

JED PV-GL-T8-NANO Tube
JED PV-GL-T8-NANO Tube

Features

  • Highly Safe Driver with 3500V Hi-pot test & short circuit/over-heat/over-current/surge protection
  • Available at SKD, easy assemble
  • Special PC Material, no banana bending at long length
  • Certificate certificate

Product Specifications

150lm/W

Item No.WCCT(KImCRIInputPFBeam AngleDim (mm)
JED-GL-2FT-10W-NANO1040001500Ra83AC100-240V0.9320°589°26
JED-GL-4FT-18W-NANO1840002700Ra83AC100-240V0.9320°1198°26
JED-GL-5FT-23W-NANO2340003450Ra83AC100-240V0.9320°1500°26

110lm/W

Item No.WCCT(KImCRIInputPFBeam AngleDim (mm)
JED-GL-2FT-10W-NANO1040001100Ra83AC100-240V0.9320°589°26
JED-GL-4FT-18W-NANO1840001980Ra83AC100-240V0.9320°1198°26
JED-GL-5FT-23W-NANO2340002530Ra83AC100-240V0.9320°1500°26

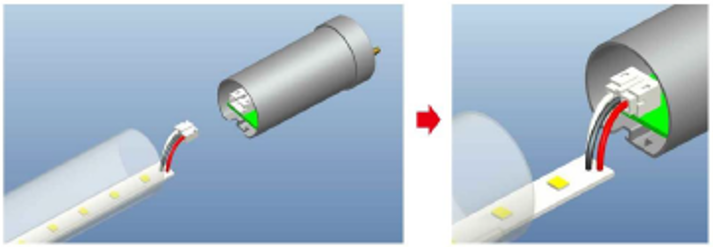

SKD Shipment and Installation
